Manual Hood. 45-Second Wash.

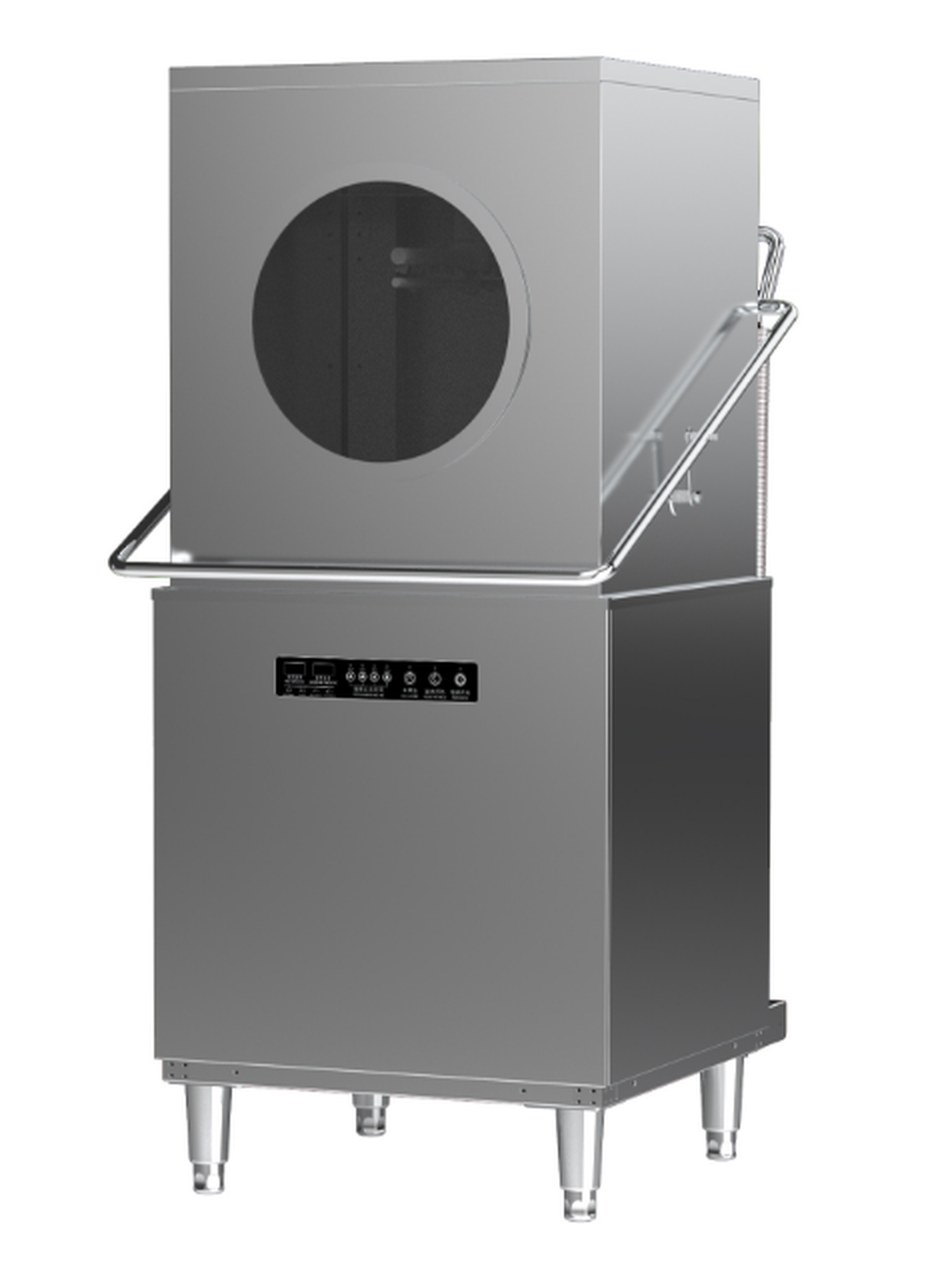

GH-300 Manual Hood-Type Dishwasher
A commercial hood-type dishwasher whose counter-balanced lift hood opens with one hand. Four selectable wash cycles (45 / 60 / 90 / 120 s), main wash up to 65°C followed by a 90°C high-temperature rinse, only 2.5 L of water per rack, built-in detergent and rinse-aid dispensers, one-touch automatic drainage and a self-cleaning mode. Automatic lift models GH-100 / GH-101 / GH-102 / GH-200 are available in the same series — see the model comparison table.
- Counter-balanced manual hood opens with one hand
- Four wash cycles: 45 / 60 / 90 / 120 seconds
- Main wash up to 65°C plus 90°C high-temperature rinse
- Only 2.5 L of water per rack
- One-touch automatic drainage with self-cleaning mode
- 220V / 380V power options for different kitchen supplies
Features
Efficient Washing
Four Wash Cycles
45, 60, 90 and 120-second cycles cover light to heavily soiled tableware — short programs for peak service, longer ones for greasy loads.
Single-Rack Washing
One rack per cycle keeps loading, washing and unloading in a clear rhythm — clean tableware is available immediately, with no need to wait for a full batch.
800 Long-Life Alloy Heating Tube
The standard 800 long-life alloy heating tube resists scaling and corrosion, holding a stable heat-up rate under sustained heavy use.
Hygiene & Sanitization
90°C High-Temperature Rinse
Main wash up to 65°C dissolves grease, then a rinse of up to 90°C sanitizes the load so tableware comes out clean and dry.
Built-in Dispensers
Built-in detergent and rinse-aid dispensers meter chemicals automatically at a consistent dose — no external add-on units required.
Self-Cleaning Mode
A built-in self-cleaning mode rinses the wash chamber at the end of service, limiting scale build-up and odours and cutting daily maintenance work.
Easy Operation
Manual Hood, Reliable Structure
The counter-balanced manual hood opens with one hand. Without a lift motor or drive train there are fewer failure points and lower maintenance cost.
Button Control Panel
Each program has its own button, so new staff can operate the machine without training.
One-Touch Automatic Drainage
One-touch automatic drainage handles water changes and end-of-service cleaning without scooping water or removing hoses.
Flexible Integration
Water & Energy Saving
Just 2.5 L of water per rack, while the large round window lets staff check the wash in progress and avoid unnecessary re-washes.
Dual Voltage
Available as 220V (7KW) or 380V (9KW) to match the power supply available in the kitchen.
Complete Dishwashing Workstation
Combines with an inlet table and twin-bowl sink table into a workstation about 2470 mm long at an 800 mm working height, giving a clear soiled-in / clean-out flow.
Specifications
| Door Opening | Manual lift-up hood |
| Control | Button control |
| Drainage | One-touch automatic drainage |
| Self-Cleaning | Self-cleaning mode included |
| Heating Element | 800 long-life alloy tube |
| Voltage & Power | 220V (7KW) / 380V (9KW) selectable |
| Wash Cycle | 45 / 60 / 90 / 120 s selectable |
| Wash Capacity | Single rack, 1 rack per cycle |
| Water Consumption / Rack | 2.5 L / rack |
| Max. Main Wash Temp. | 65 °C |
| Max. Rinse Temp. | 90 °C |
| Dispenser | Built-in (detergent + rinse aid) |
| Size (W x D x H) | 638 x 745 x 1480 mm |
| Loading Height | 800 mm |
| Height with Hood Open | 1990 mm |
Product Models

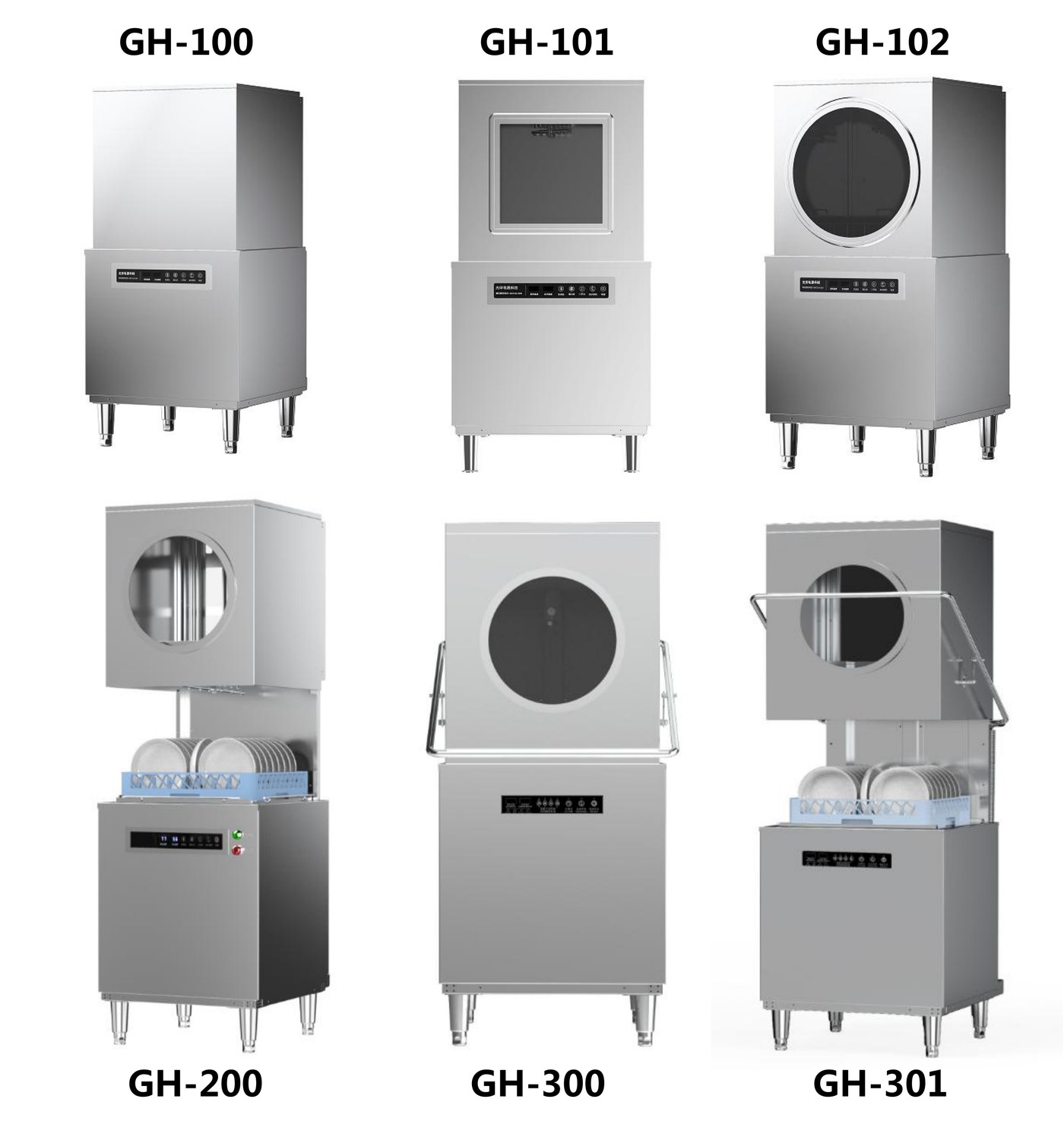

GH Series Models
| Model | GH-100 Economy | GH-100 Upgraded | GH-101 Flagship | GH-102 Premium | GH-200 Tall | GH-300 Manual |
|---|---|---|---|---|---|---|
| Door Opening | Automatic lift | Automatic lift | Automatic lift | Automatic lift | Automatic lift | Manual hood |
| Control | Touch panel | One-touch auto wash | One-touch auto wash | One-touch auto wash | One-touch auto wash | Button control |
| Drainage | Manual | One-touch automatic | One-touch automatic | One-touch automatic | One-touch automatic | One-touch automatic |
| Self-Cleaning Mode | — | |||||
| Heating Element | 304 / 800 optional | 304 / 800 optional | 800 long-life alloy | 800 long-life alloy | 800 long-life alloy | 800 long-life alloy |
| Rated Voltage | 220V / 380V | 220V / 380V | 220V / 380V | 220V / 380V | 220V / 380V | 220V / 380V |
| Rated Power | 7KW / 9KW | 7KW / 9KW | 7KW / 9KW | 7KW / 9KW | 7KW / 9KW | 7KW / 9KW |
| Wash Cycle | 60S / 90S | 60S / 90S | 60S / 90S | 60S / 90S | 60S / 90S | 45 / 60 / 90 / 120S |
| Water / Rack | 2.2 L | 2.2 L | 2.2 L | 2 L | 2.5 L | 2.5 L |
| Main Wash Temp. | Up to 65°C | Up to 65°C | Up to 65°C | 55–65°C | 55–65°C | Up to 65°C |
| Rinse Temp. | Up to 90°C | Up to 90°C | Up to 90°C | 80–90°C | 80–90°C | Up to 90°C |
| Dispenser | Built-in | Built-in | Built-in | Built-in | Built-in | Built-in |
| Size (W x D x H, mm) | 585 x 655 x 1280 | 585 x 655 x 1280 | 585 x 655 x 1280 | 585 x 655 x 1280 | 580 x 655 x 1360 | 638 x 745 x 1480 |
| Loading Height (mm) | 750 | 750 | 750 | 750 | 800 | 800 |
| Height with Door Open (mm) | 1660 | 1660 | 1660 | 1660 | 1800 | 1990 |
Applications
Installation

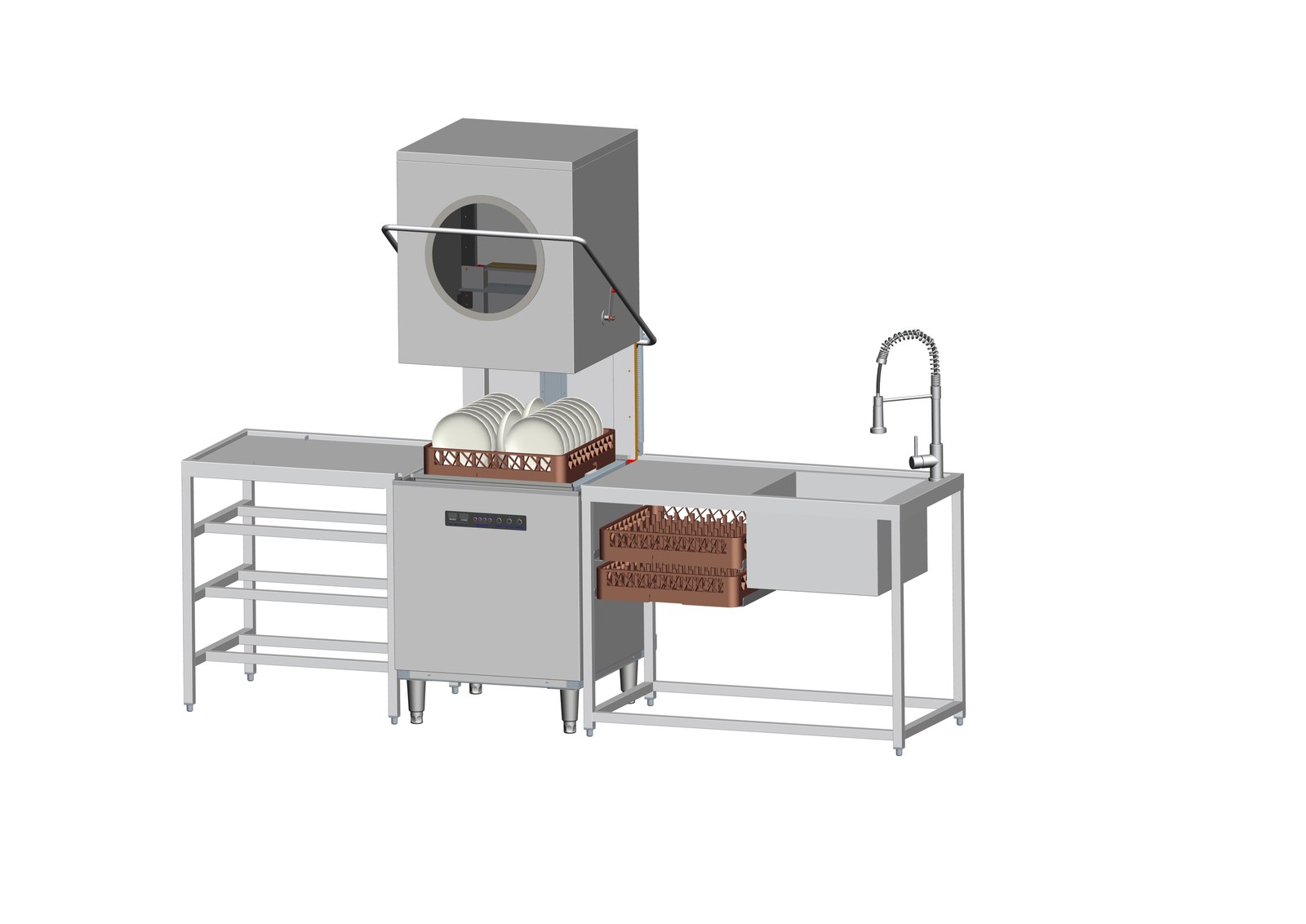

The GH-300 combines with an inlet table and a twin-bowl sink table into an integrated dishwashing workstation about 2470 mm long with an 800 mm working height: soiled tableware is racked at the inlet table, pushed into the machine and collected on the sink side, giving a clear one-way flow. Allow 638 mm (W) x 745 mm (D) for the machine footprint and 1990 mm of clear height for the hood to open, so avoid wall cabinets, extraction ducting or pipework directly above. Water inlet, drain and the matching power supply (220V/7KW or 380V/9KW) should be provided nearby.
FAQ
Is the GH-300 a manual hood or an automatic lift model?
The GH-300 is the manual hood model. Its counter-balanced hood opens with one hand and there is no lift motor or drive train, so there are fewer failure points and lower maintenance cost. GH-100, GH-101, GH-102 and GH-200 in the same series are automatic lift models — see the model comparison table for the differences.
How much clearance does the hood need when it opens?

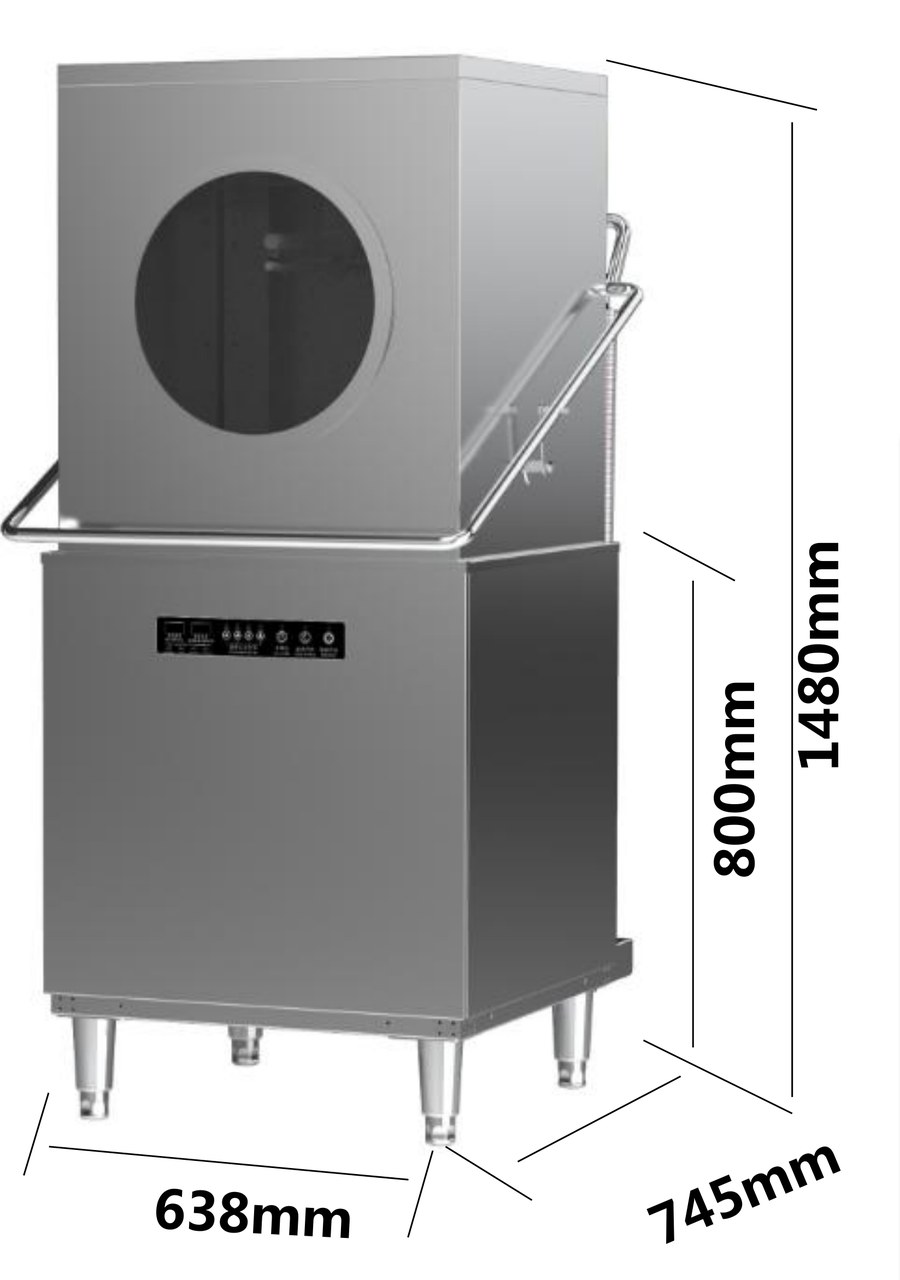

The machine is 1480 mm high and reaches 1990 mm with the hood fully open, so allow at least 1990 mm of clear height above the installation position and keep wall cabinets, extraction ducting and pipework out of the way. The footprint is 638 mm wide by 745 mm deep with an 800 mm loading height.
How long is a wash cycle and how much water does it use?
Four cycle lengths are selectable — 45, 60, 90 and 120 seconds — depending on how soiled the tableware is. Each cycle washes one rack and uses 2.5 litres of water.
What wash and rinse temperatures does it reach?
Main wash runs at up to 65°C to dissolve grease and the rinse reaches up to 90°C, sanitizing the load with heat so tableware comes out clean and dry. Heating is provided by an 800 long-life alloy heating tube.
What power supply does the GH-300 require?
It is available as 220V (7KW) or 380V (9KW), so the configuration can be matched to the kitchen supply. A water inlet and a drain also need to be available nearby.
How much tableware fits in one cycle?
The GH-300 washes a single rack per cycle. How many plates or bowls fit depends on their size and how they are arranged in the rack — use the dimension drawing as a guide, or send us your tableware specifications and we will confirm it for you.
Are external chemical dispensers required?
No. Detergent and rinse-aid dispensers are built in and meter chemicals automatically. One-touch automatic drainage and a self-cleaning mode handle water changes and end-of-service cleaning without scooping water or removing hoses.
How do I choose between the GH-300 and the GH-200?
The GH-200 is the tall automatic lift model: 580 x 655 x 1360 mm, 1800 mm with the door open, 60/90-second cycles. The GH-300 is the manual hood model: 638 x 745 x 1480 mm, 1990 mm with the hood open, and four cycle lengths from 45 to 120 seconds. Both use 2.5 litres per rack. Choose the GH-300 for a simpler mechanism and more cycle options, or the GH-200 for automatic opening and a smaller footprint.
