Key Features

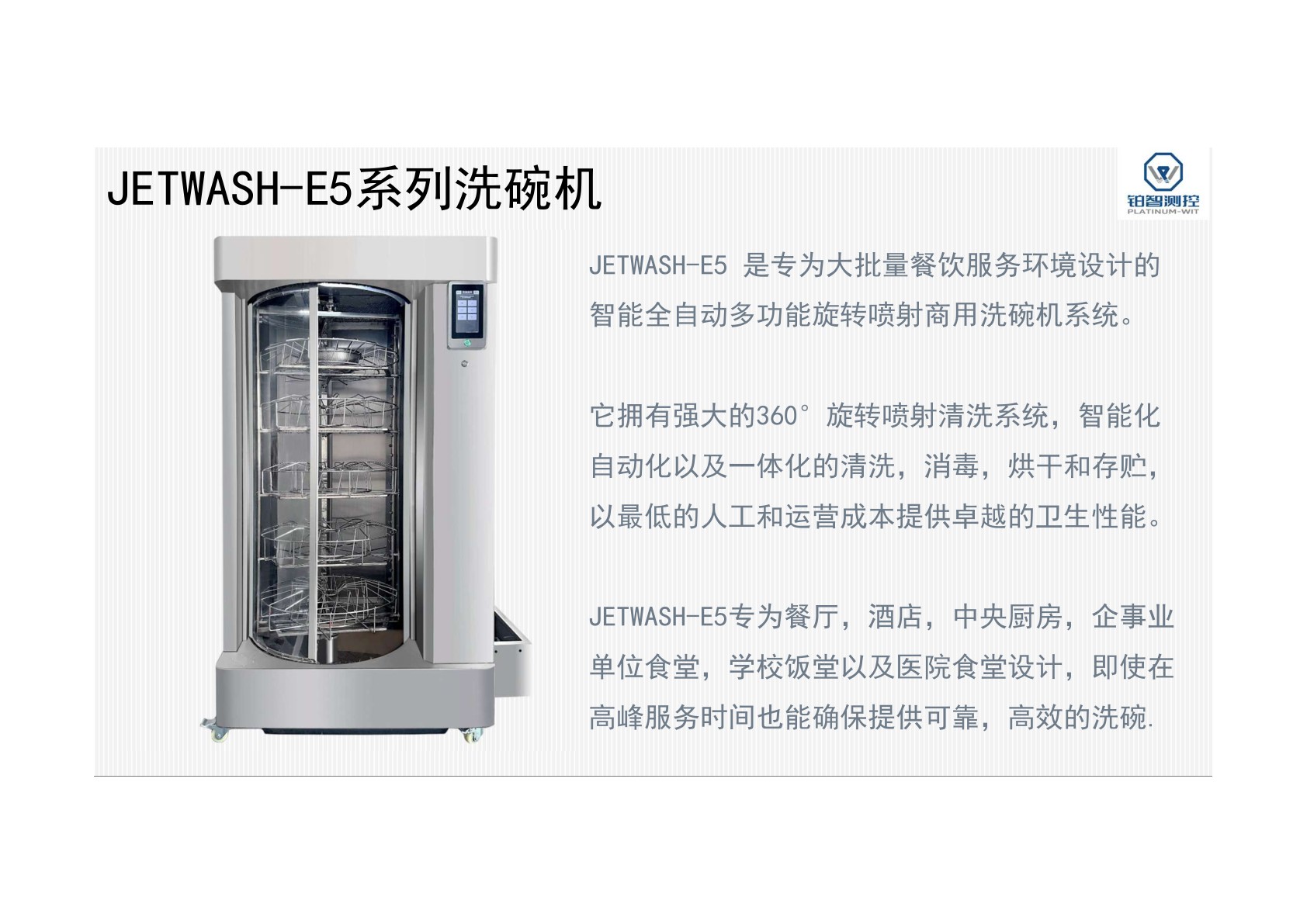

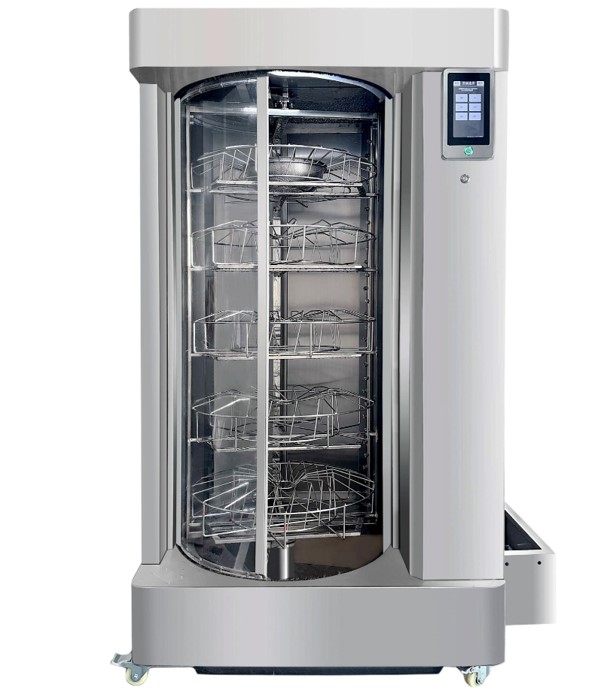

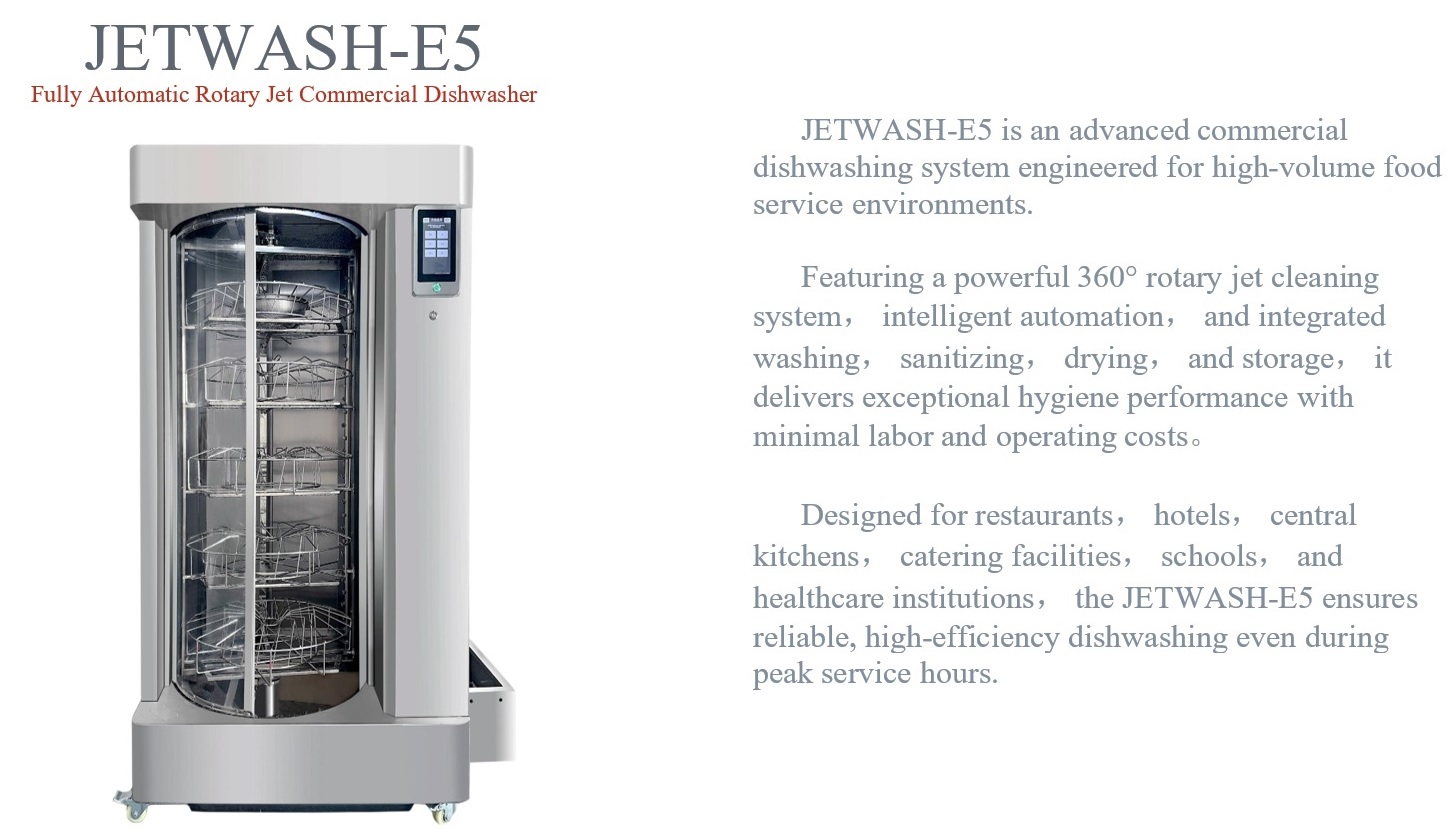

JETWASH-E5 Series Dishwasher
An advanced commercial dishwashing system engineered for high-volume food service environments. Featuring a powerful 360° rotary jet cleaning system, intelligent automation, and integrated washing, sanitizing, drying, and storage — delivering exceptional hygiene performance with minimal labor and operating costs.
- High-capacity Cleaning: 100+ dishes per cycle
- Ultra-Fast: Wash cycles as short as 1 minute
- Powerful 360° Rotary Jet Technology
- High-temperature sanitization at 90°C
- Chemical-Residue Free Cleaning
- One-Touch Smart Operation
- 100+ customizable programs with OTA remote upgrades
- All-in-one: Washing, Sanitizing, Drying & Storage
- One operator manages up to 5 machines
Features
Exceptional Performance
High-capacity Cleaning
Cleans 100+ dishes per cycle. Supports up to 5 baskets of bowls simultaneously. Ideal for high-throughput commercial kitchens.
Ultra-Fast Wash Cycles
Rapid cleaning cycles as short as 1 minute. Reduces waiting time during busy service periods. Maintains consistent cleaning performance.
Powerful 360° Rotary Jet Technology
High-pressure, high-flow water system. 360° rotating spray coverage. Eliminates blind spots and stubborn residues.
Advanced Hygiene Protection
High-temperature sanitization
90°C high-temperature rinsing. Effective sterilization of dishes and utensils. Meet international food safety and hygiene standards.
Chemical-Residue Free Cleaning
Designed to minimize detergent and anionic residue. Supports safer and cleaner tableware.
Intelligent Automation
One-Touch Smart Operation
Simple one-button operation. New operators can be trained in less than one minute.
Multi-Program Flexibility
Up to 100+ customizable washing programs. Optimized for different dish types and cleaning needs.
Smart Connectivity
OTA (Over-The-Air) remote system upgrades. Cloud platform integration for operational monitoring and management.
All-in-one Integrated System
All-in-one Integrated System
Jetwash-E5 combines Washing, Sanitizing, Drying, and Storage in a single compact solution. This integrated design reduces workflow complexity, saves kitchen space, and improves operational efficiency.
Operational Efficiency
Reduced Labor Requirement
One operator can manage up to five machines simultaneously.
Low Operating Cost
Extremely energy-and water-efficient design. Optimized for high-volume commercial use.
Specifications
| Size (mm) | 1050 x 800 x 1930 |
| Net Weight (Kg) | 120 |
| Water consumption / Cycle | 15L |
| Dishwashing quantity / Cycle | ≥100pcs |
| Number of Layers | ≤7 |
| Load-bearing capacity (Kg) | ≤100 |
Product Models

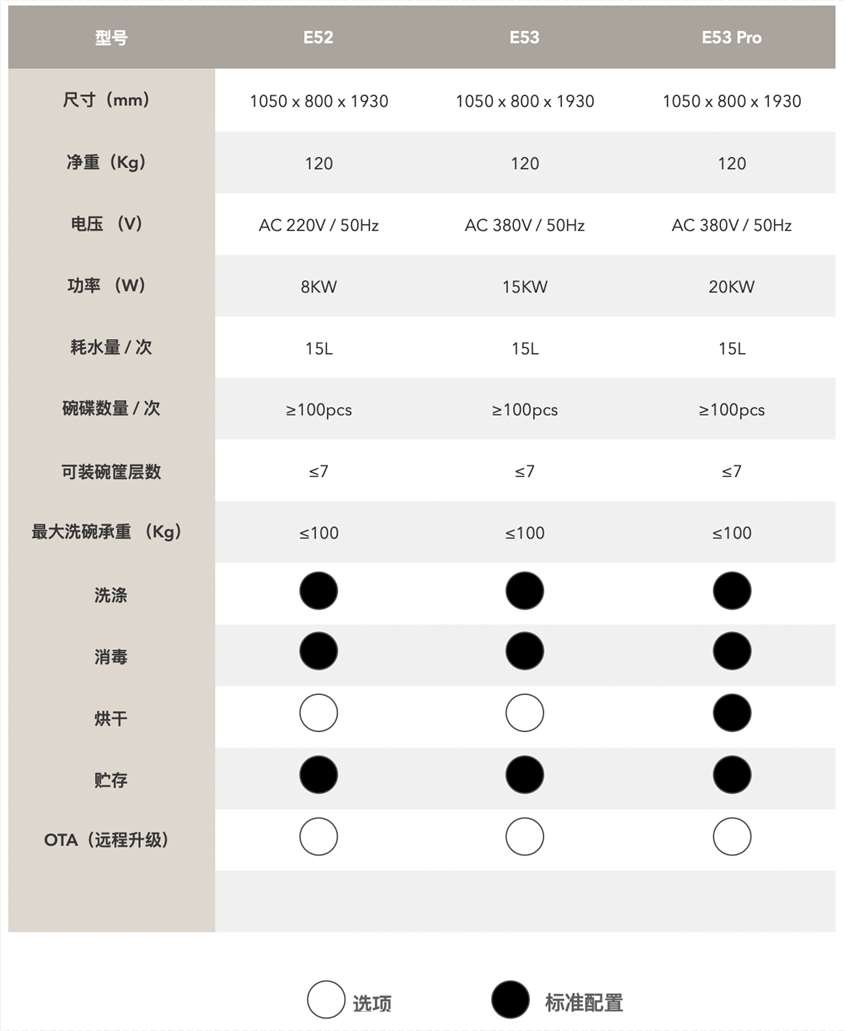

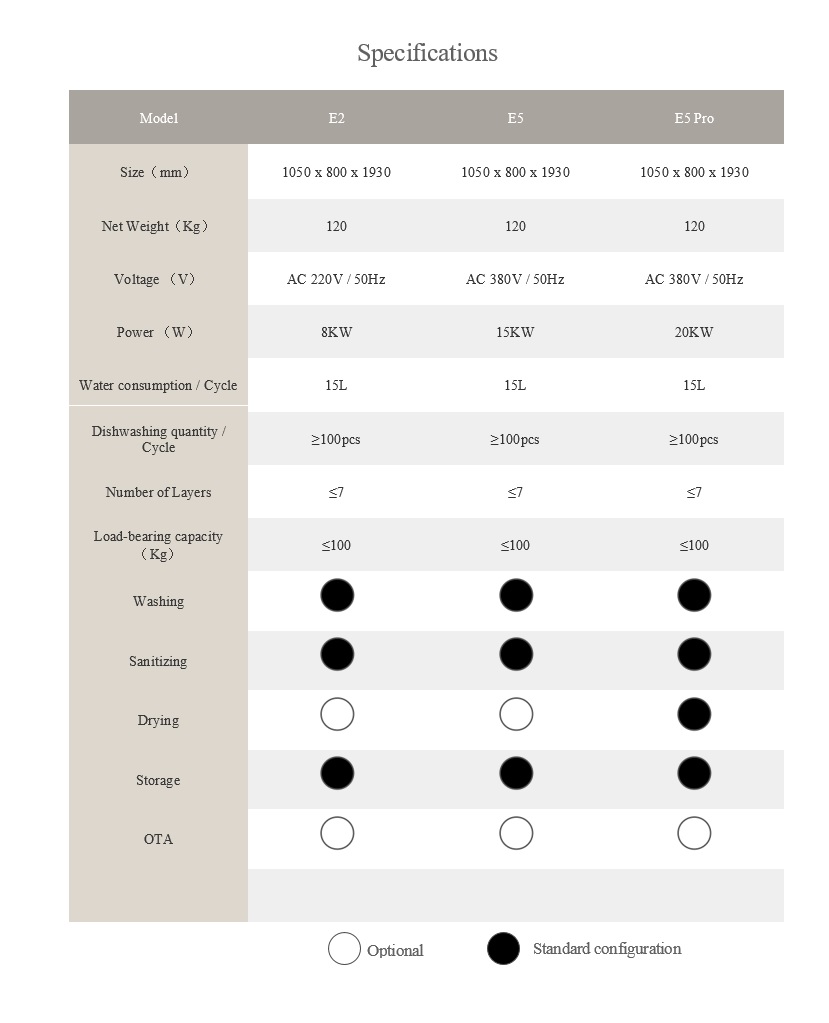

Specifications
| Model | E2 | E5 | E5 Pro |
|---|---|---|---|
| Size（mm） | 1050 x 800 x 1930 | 1050 x 800 x 1930 | 1050 x 800 x 1930 |
| Net Weight（Kg） | 120 | 120 | 120 |
| Voltage （V） | AC 220V / 50Hz | AC 380V / 50Hz | AC 380V / 50Hz |
| Power （W） | 8KW | 15KW | 20KW |
| Water consumption / Cycle | 15L | 15L | 15L |
| Dishwashing quantity / Cycle | ≥100pcs | ≥100pcs | ≥100pcs |
| Number of Layers | ≤7 | ≤7 | ≤7 |
| Load-bearing capacity （Kg） | ≤100 | ≤100 | ≤100 |
| Washing | |||
| Sanitizing | |||
| Drying | |||
| Storage | |||
| OTA |
Applications
FAQ
How fast is a JETWASH-E5 cycle and how much does it wash at once?
A cycle can be as short as one minute and cleans 100 or more items, holding up to 5 baskets of bowls across a maximum of 7 layers with a load of up to 100 kg. During peak service the short program keeps clean tableware coming without a queue.
How much water does each cycle use?
Each cycle uses 15 litres. Combined with 100+ items per cycle, water and energy use per item stay low — the design is optimized for the running cost of high-volume commercial kitchens.
What temperature does it reach, and does it meet sanitizing requirements?
A 90°C high-temperature rinse sterilizes tableware in line with international food safety and hygiene standards. The machine is also designed to minimize detergent and anionic residue, and the 360° rotary jet system eliminates blind spots and stubborn soil.
How do I choose between the E2, E5 and E5 Pro?
All three share the same 1050 x 800 x 1930 mm cabinet, 120 kg net weight, 15 L per cycle, 100+ items per cycle, up to 7 layers and a 100 kg load limit. They differ in power and drying: the E2 runs on AC 220V/8KW, the E5 on AC 380V/15KW and the E5 Pro on AC 380V/20KW, while drying is optional on the E2 and E5 and standard on the E5 Pro.
What power supply and footprint does installation need?
Depending on the model the supply is AC 220V/50Hz (E2, 8KW) or AC 380V/50Hz (15KW on the E5, 20KW on the E5 Pro). The cabinet occupies 1050 mm x 800 mm and stands 1930 mm high at 120 kg net. Because washing, sanitizing, drying and storage are integrated in one unit, no separate sanitizing or tableware storage cabinet is needed.
How many staff are needed and how long is training?
One-touch operation means a new operator can be trained in under a minute, and one operator can run up to five machines at the same time — so the labour tied up in dishwashing drops sharply.
Which tableware suits the JETWASH-E5, and what is not recommended?
It suits round plates and stainless steel plates from 13 to 30 cm, bowls in ceramic, melamine, stainless steel or bone porcelain, rice-cooker inner pots, stew pots, tea cups and glasses, kindergarten trays of various shapes, and cafeteria trays up to 37 cm long and 27 cm wide. Steamed-fish platters or dishes over 40 cm across, pots and pans, and the large trays used in school canteens are not recommended.
Can programs be customized, and does it support remote upgrades?
Over 100 customizable wash programs can be tuned for different tableware types and soil levels. The machine supports OTA remote firmware upgrades and can connect to a cloud platform for operational monitoring; OTA is optional on the E2 and standard on the E5 and E5 Pro.
Where is the JETWASH-E5 typically used?
It is used in restaurants, hotels, catering companies, central kitchens, schools and universities, hospitals and healthcare facilities, and large food production sites — anywhere throughput is high.
Suitable Tableware
1 Suitable for various types of discs/plates ranging from 13 to 30 cm (5 to 12 inches), stainless steel discs

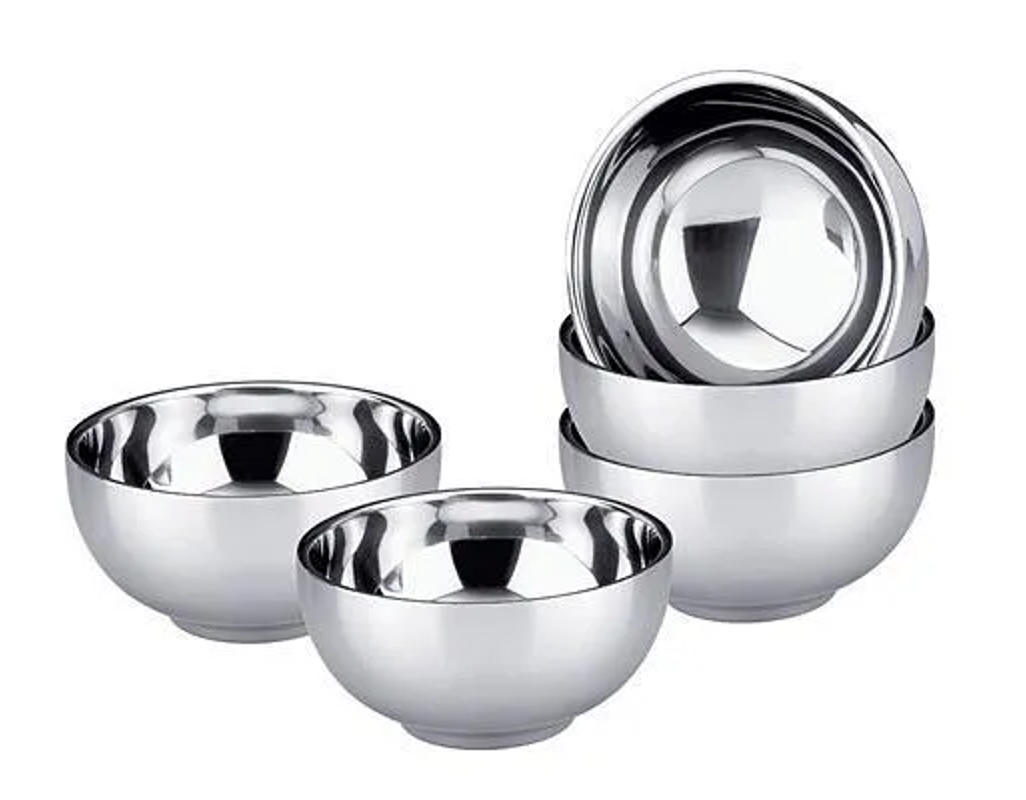

2 Suitable for bowls of various sizes and materials, such as ceramics, melamine, and stainless steel, porcelain bones etc
3 Applicable to all kinds of rice cookers

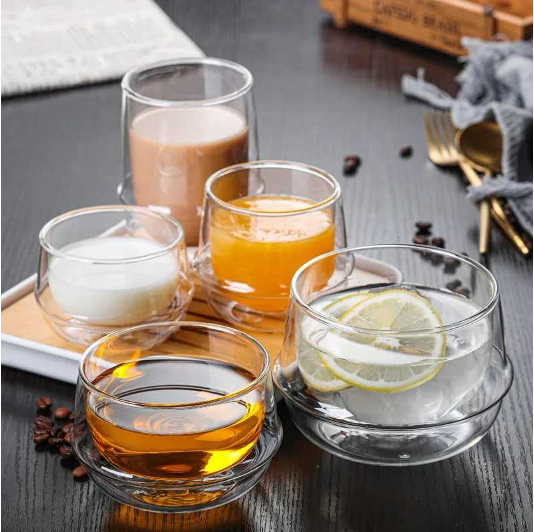

4 Suitable for various stew pots, tea cups, and glass cups

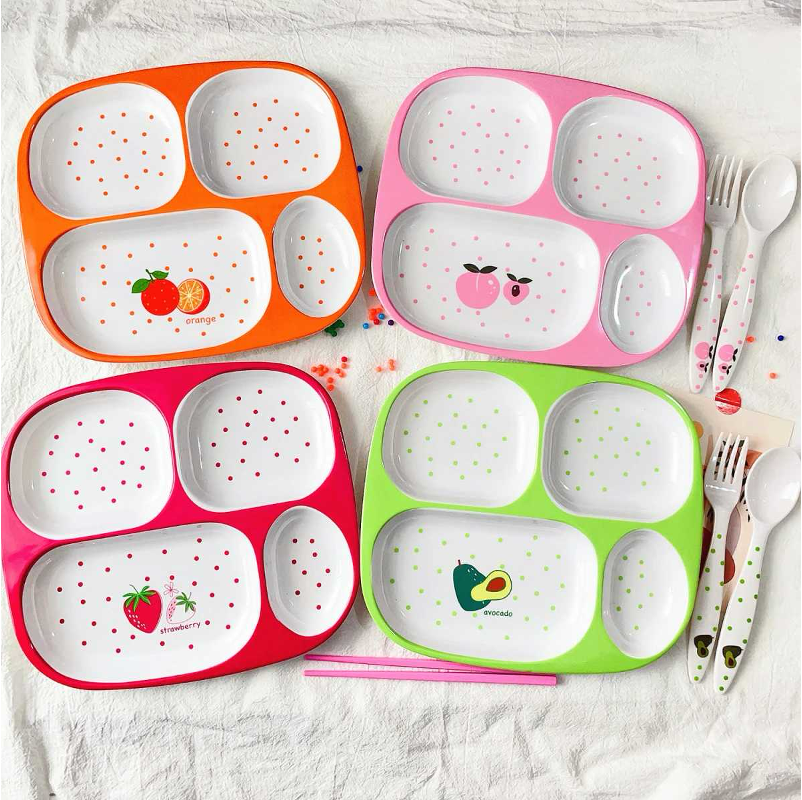

5 Suitable for kindergarten plates of various shapes

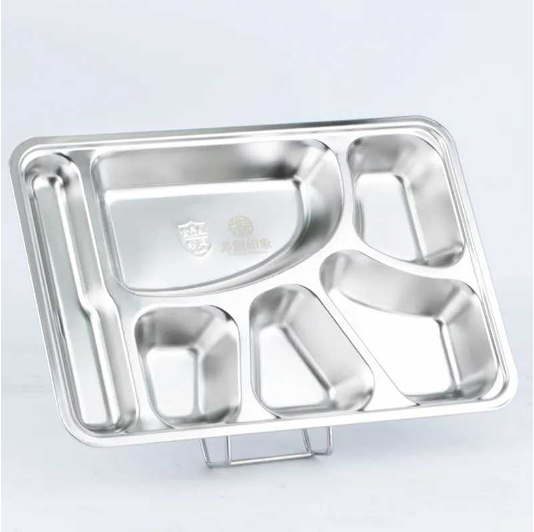

6 Suitable for various types of cafeteria plates with a length ≤ 37 centimeters and a width ≤ 27 centimeters
Not Recommended

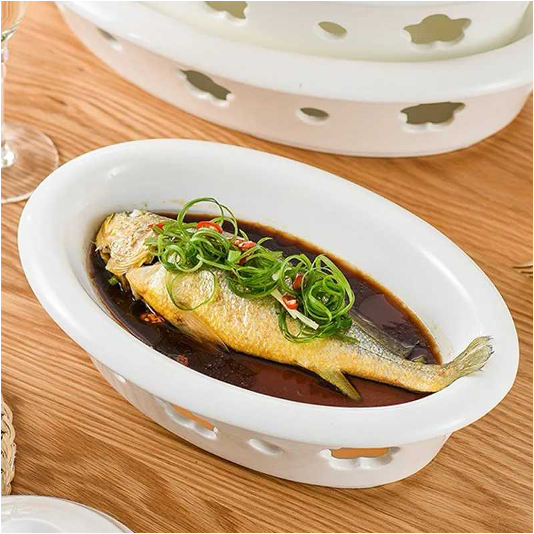

1 It is not recommended to clean various steamed fish dishes or large dishes with a diameter exceeding 40 centimeters

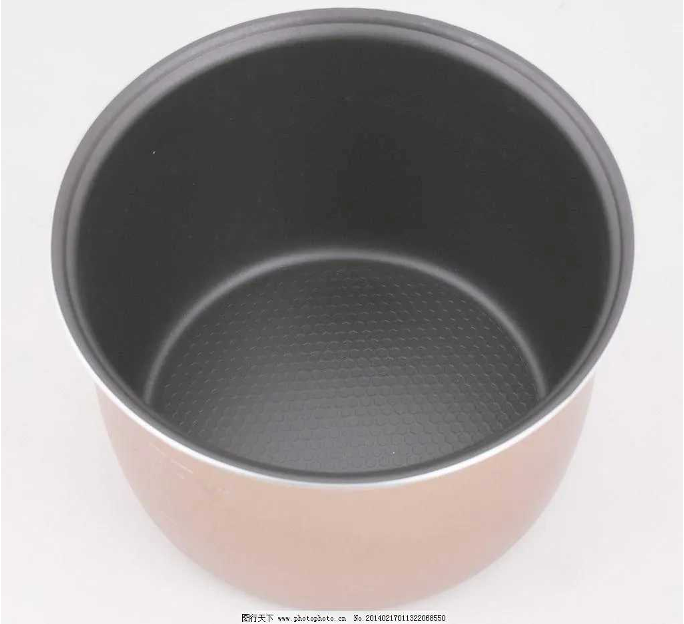

2 Various types of pots or pans
3 Large trays in various schools and restaurants
